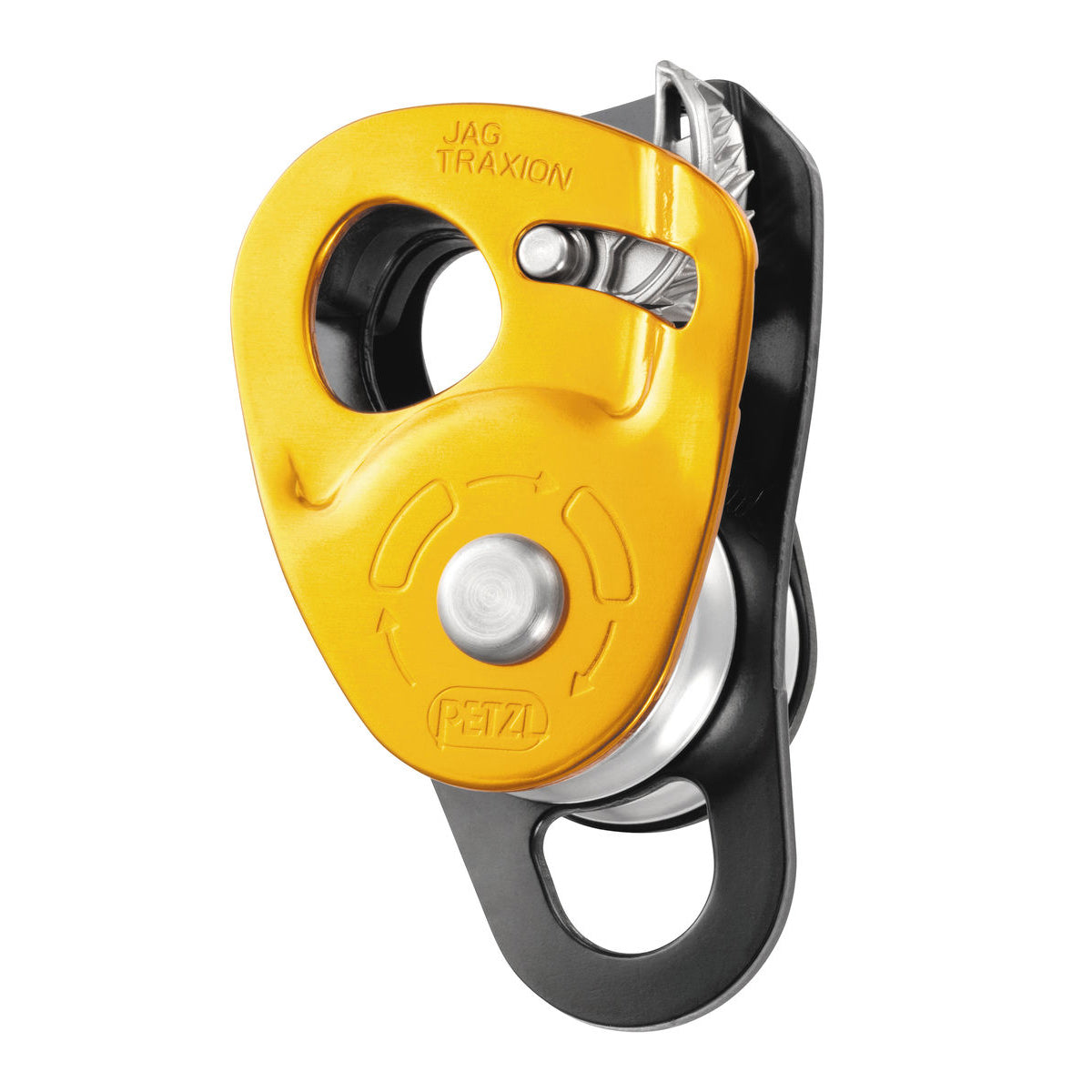

The JAG TRAXION pulley. A compact, high efficiency, double sheaved, progress capture pulley. With stainless steel sheaves on sealed ball bearings and bottom beckett. The toothed cam has a slot for self-cleaning. Great when used with the JAG pulley for high efficiency 4:1 mecahnical advantage. Specifications:
• Rope compatibility: 8 to 11 mm
• Sheave diameter: 25 mm
• Max WLL: 2 x 1.5 kN x 2 = 6 kN
• Breaking strength: 2 x 4 kN x 2 = 16 kN
• Efficiency: 91 %
• Certification(s): CE EN 12278, NFPA 1983 Technical Use
