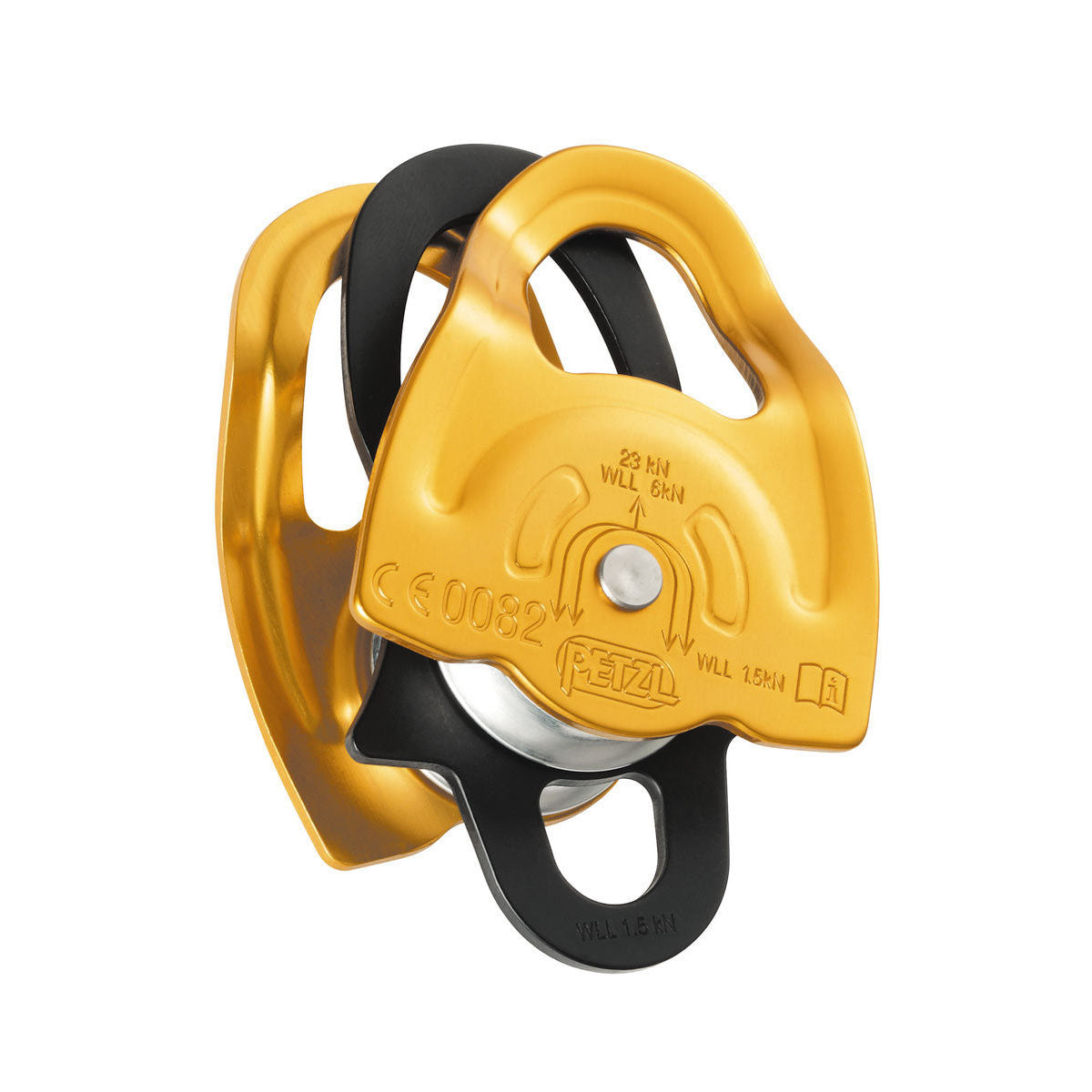

The GEMINI is a compact double pulley that sets up progress capture systems of high mechanical advantage.
• Special side plates designed for use with a Prusik friction hitch in progress capture systems
• Parallel mounted sheaves and auxiliary attachment point for creating different types of hauling systems
• Sheave mounted on sealed ball bearings for excellent efficiency
• Rope compatibility: 7 to 11 mm
• Sheave diameter: 25 mm
• Ball bearings: yes
• Efficiency: 91 %
• Maximum working load: 2 x 1,5 kN x 2 = 6 kN
• Breaking strength: 23 kN Certification(s): CE EN 12278, NFPA 1983 Technical Use
